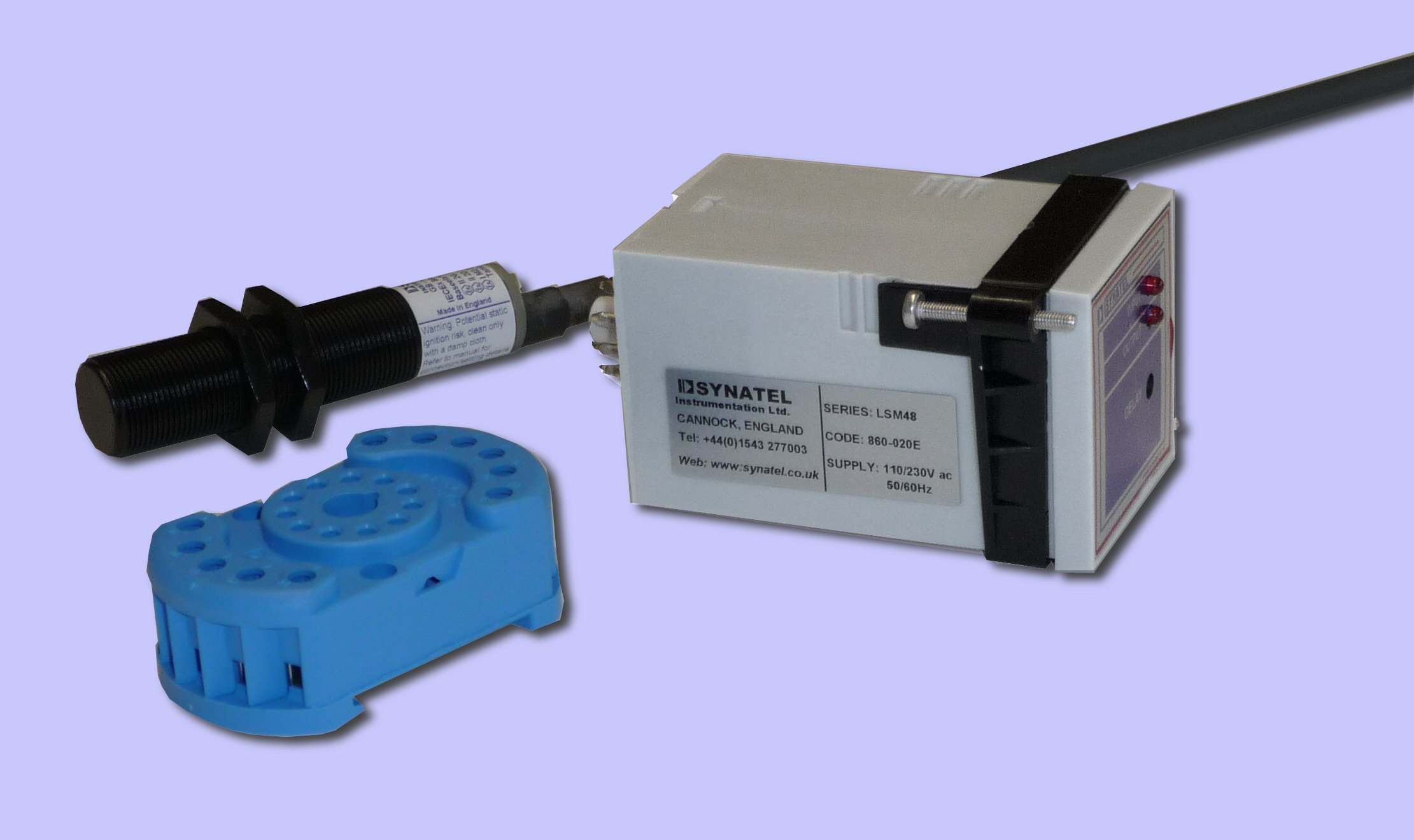

MODUSTOP LSM48 Modular Stopped Motion Monitor
A modular stopped motion monitor, designed by SYNATEL to work with a separate proximity sensor. Output goes open circuit after time period if incoming pulses stop. Non-contact, solid state unit. 48mm DIN enclosure. Adjustable input signal time delay with relay output. Works with any SYNATEL inductive sensor plus sensors with npn transistor or contact output. Ideal for gear and chain driven applications.
MODUSTOP LSM48 Modular Stopped Motion Monitor
Gallery
To purchase this item please contact the 4B Group
Visit 4B Group
Visit 4B Group
Downloads
You may also like...
Data/Specifications
| Supply | 110/230V 50/60Hz (24V dc optional) |
| Output | SPCO Relay rated @5A 240V max. non-inductive |
| Output State | Output energised (ON) providing at least one input pulse is received within time period set on top plate of module. Output de-energises if no pulses received within time period |
| Operating Range | Dependant upon sensor used |
| Time Delay | Standard input time delay = 1.5 to 15 sec Other time delays available to order are: 0.3 to 3 sec, 3 to 30 sec or 6 to 60 sec |
| Calibration | Adjustable potentiometer sets input delay |
| Start-up Delay | Output energises for set time period and ignores incoming pulses, allows machinery to reach normal running speed |
| Indication | LED indication of input pulses & output energised |
| Input | npn transistor or contact input. Any SYNATEL proximity sensor is suitable |
| Connection | 11 pin internation plug-in relay base Supplied seperately |
| Enclosure | Moulded Polycarbonate & Acrylic |
| Weight | 210g |
Dimensions
Connections
